Anglers searching for hummingbird live scope technology are looking for the modern standard in forward-facing sonar: real-time, live-action underwater visibility that displays fish behavior, bait movement, and structure as it happens. In the Humminbird marine ecosystem, this live-action sonar capability is delivered by dedicated forward-looking transducer hardware paired with powerful multi-function displays. Unlike traditional historical sonar or static downward-firing down imaging that only reveals what your boat has already passed over, real-time humminbird live sonar projects an active acoustic beam into the water column. This lets you observe how fish react to lure presentations, watch schools suspend around brush piles, and track roaming predators around offshore structure before you cast.

This humminbird fish finder comparison examines four distinct Humminbird products to help you select the exact hardware needed for your boat layout and fishing style. The lineup includes one dedicated forward-facing live transducer and three separate chartplotter displays that span different chassis sizes, networking capabilities, and sonar formats. You will learn how the Humminbird MEGA Live 2 Forward-Facing Sonar connects directly to high-tier displays, why the Humminbird XPLORE Series GPS Fish Finder serves as the nerve center for modern helm setups, and how standalone options like the Humminbird Helix 7 G4 GPS Fish and Humminbird 411660-1 Helix 5 Chirp GPS handle daily navigation and structure scanning. Calibrating marine electronics requires methodical planning of transducer cones and console visibility, much like configuring fine glass on a kahles rifle scope for long-range precision.

Which Humminbird Fish Finders Should You Buy

• Choose the Humminbird MEGA Live 2 Forward-Facing Sonar if you already own a compatible display and want real-time bait tracking and live fish observation in forward, down, and landscape views.
• Choose the Humminbird XPLORE Series GPS Fish Finder if you want a 10-inch touchscreen and keypad hub that connects directly to live sonar, Ethernet networking, and Minn Kota trolling motors.
• Choose the Humminbird Helix 7 G4 GPS Fish if you want an all-in-one console package that includes a transom transducer for high-resolution MEGA Side Imaging and Down Imaging.
• Choose the Humminbird 411660-1 Helix 5 Chirp GPS if you need a compact, space-saving chartplotter and Dual Spectrum CHIRP sonar unit for small consoles or kayak dashboards.

1. Humminbird MEGA Live 2… 2.3 lb
2. Humminbird XPLORE Series GPS Fish… 4.75 lb
3. Humminbird Helix 7 G4 GPS Fish 2.1 lb
4. Humminbird 411660-1 Helix 5 Chirp… 2.12 lb

Measure shown: Weight (lb). Every figure is the number the seller publishes on that product page — nothing on this site is measured by us. Longest bar is highlighted.

01 Humminbird MEGA Live 2 Forward-Facing Sonar

See it on Amazon

Best for: Anglers tracking live fish and lures real-time

The Humminbird MEGA Live 2 Forward-Facing Sonar represents the core transducer technology anglers seek when exploring live sonar options. This unit delivers real-time imaging clarity, allowing you to watch fish strike your lure, observe individual fish holding tight to timber, and track targets across the water column without ping latency. Unlike competitor live systems that mandate installing an external processor box inside your boat storage compartments, this transducer features an integrated design that connects straight to your display head unit using the provided Ethernet cable. This streamlined installation eliminates the need to route extra bulky black-box power harnesses through your bilge or rod lockers.

Versatility on the water comes from its three selectable viewing orientations: Forward mode, Down mode, and Landscape mode. Forward mode sweeps the water column ahead of your position to locate structure and casting targets; Down mode monitors deep vertical presentations directly beneath your hull; and Landscape mode provides a wide, top-down perspective ideal for scouting shallow weed edges and flats. The transducer mounts directly to trolling motor shafts, including Minn Kota Ultrex, Ultrex QUEST, Fortrex, Maxxum, and Edge models, and fits either side of the shaft. It is also compatible with forward-facing sonar poles, transom brackets with an optional mount, and the Humminbird TargetLock system. Operating this live transducer requires a compatible display, specifically working with Humminbird XPLORE, APEX, and SOLIX G3 units, meaning standalone Helix owners must step up to a networked platform.

For tournament anglers and serious weekend fishermen, this transducer provides dynamic lure tracking and an optimized sonar cone angle designed to maintain broad situational awareness while separating individual fish from dense cover. The listing shows that Humminbird backs this imaging accessory with a two-year manufacturer warranty and provides a full hardware bundle right out of the box.

• Three distinct viewing orientations including Forward, Down, and Landscape modes for complete underwater situational coverage.
• Direct Ethernet connection to control head without requiring an external sonar black box.
• Dynamic bait and lure tracking powered by an optimized sonar cone angle for precise target separation.
• Includes adjustable trolling motor mounting bracket, 10-foot power cable, and 20-foot Ethernet cable.

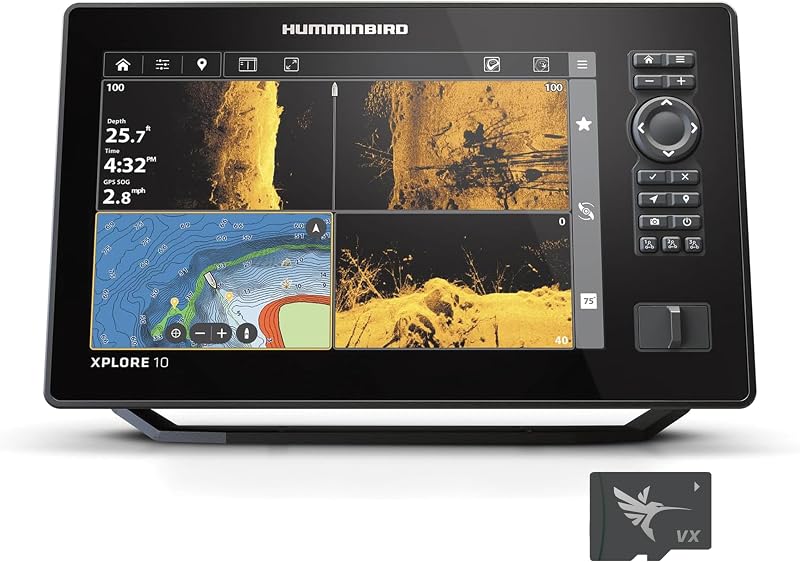

02 Humminbird XPLORE Series GPS Fish Finder

See it on Amazon

Best for: Captains building an advanced networked helm station

The Humminbird XPLORE Series GPS Fish Finder is a high-performance 10-inch marine display engineered to anchor a comprehensive helm or bow workstation. This unit is offered as a Control Head Only configuration, making it the ideal companion display for anglers installing the Humminbird MEGA Live 2 forward-facing sonar or those who already have dedicated network transducers in place. Featuring a hybrid interface, it combines a responsive high-definition touchscreen with tactile physical softkeys. This dual-control architecture ensures seamless menu navigation when running at speed or operating in heavy chop and freezing spray with wet hands. Scanning broad offshore structure on this high-resolution display provides expansive situational awareness, akin to surveying vast terrain through a maven spotting scope during field scouting.

Sonar capabilities built into the XPLORE processing core include MEGA Side Imaging+ with up to 200 feet of lateral scanning coverage on each side of the vessel, MEGA Down Imaging+ reaching 200 feet of vertical depth, and Dual Spectrum CHIRP sonar. Navigation is equally robust, powered by internal GPS loaded with Humminbird Basemap covering more than 10,000 lakes and coastal areas. Additionally, Humminbird bundles both LakeMaster and CoastMaster VX map cards for the United States and Canada, allowing you to view depth contours, safe boating channels, hazards, and marina locations without purchasing secondary mapping media. The system also includes eight hours of internal AutoChart Live recording, letting you map uncharted waterways in real time with custom depth contours, bottom hardness, and vegetation overlays.

Networking integration is a defining strength of the XPLORE series. With high-speed Ethernet, built-in NMEA 2000 communication, and Bluetooth support, this control head forms the centerpiece of the One-Boat Network. It communicates effortlessly with Minn Kota trolling motors and shallow water anchors, giving you hands-free control of boat positioning, spot-lock holding, and anchor deployment straight from the console. Anglers can also sync up to 10,000 waypoints using custom colors and icons through an upgraded mobile waypoint management system.

• Hybrid user interface featuring a 10-inch high-definition touchscreen combined with physical keypad controls.
• Full native support for MEGA Live 2 forward-facing sonar, MEGA Side Imaging+, and MEGA Down Imaging+.
• Preloaded Humminbird Basemap plus included LakeMaster and CoastMaster VX map cards.
• One-Boat Network ready with high-speed Ethernet, NMEA 2000, and Bluetooth wireless connectivity.

03 Humminbird Helix 7 G4 GPS Fish

See it on Amazon

Best for: Anglers wanting complete mid-sized side imaging setups

The Humminbird Helix 7 G4 GPS Fish is a self-contained, high-definition chartplotter and imaging sonar package tailored for anglers who want premium side and down scanning without the complexity of large networked hubs. Built around a 7-inch display, this fourth-generation HELIX unit upgrades your viewing clarity, making it easy to discern subtle bottom transitions, submerged timber, and suspended fish across preloaded split-screen layouts. It relies on Humminbird’s classic keypad interface, utilizing intuitive softkeys that deliver positive tactile feedback in foul weather conditions where touchscreens can become cumbersome.

Unlike control-head-only models, this Helix 7 package includes the transom-mount XNT 9 HW MSI 150 T transducer, supplying everything required for immediate on-water deployment. The included hardware delivers MEGA Side Imaging coverage extending 125 feet to either port and starboard, alongside MEGA Down Imaging reaching 125 feet beneath your hull. Operating at high frequencies, MEGA Imaging provides three times the detail of traditional standard imaging sonars, turning indistinct underwater clutter into recognizable trees, rock piles, and fish silhouettes. The visual fidelity reveals crisp structural contours beneath the surface, operating on principles of target distinction not unlike isolating thermal targets with a rix thermal scope in open field environments.

Complementing its structural imaging, the unit features Dual Spectrum CHIRP 2D sonar powered by a Low-Q transducer. Anglers can toggle between Wide Mode for broad water-column searches and Narrow Mode for surgical target separation between fish arches and structure. On the navigation front, internal GPS coupled with Humminbird Basemap outlines continental U.S. coastlines and over 10,000 lakes. Built-in AutoChart Live provides eight hours of live contour generation, with expanded capacity supported through accessory AutoChart Zero Line SD cards. While this unit delivers exceptional imaging value, note that the standard G4 Helix 7 does not support Humminbird MEGA Live 2 forward-facing sonar transducers, serving instead as an independent imaging powerhouse.

• Complete scanning package including the XNT 9 HW MSI 150 T transom-mount transducer.
• MEGA Side Imaging and MEGA Down Imaging reaching 125 feet of coverage with high-frequency clarity.
• Dual Spectrum CHIRP sonar featuring switchable Wide and Narrow search modes.
• Upgraded 7-inch high-definition display with reliable, weather-resistant keypad navigation.

04 Humminbird 411660-1 Helix 5 Chirp GPS

See it on Amazon

Best for: Kayak anglers and compact console installations

The Humminbird 411660-1 Helix 5 Chirp GPS provides an efficient, space-conscious marine electronics solution for small boat consoles, jon boats, and fishing kayaks where mounting space and battery reserve are at a premium. Featuring a 5-inch color TFT display, this third-generation HELIX console packs core fish-finding intelligence and digital GPS chartplotting into a compact housing that draws minimal current from your onboard battery bank. It utilizes Humminbird’s proven softkey menu system, allowing you to cycle through pre-loaded split-screen views, adjust gain, and drop waypoints with one hand.

Sonar performance is anchored by Humminbird’s Dual Spectrum CHIRP technology. Engineered around a proprietary Low-Q CHIRP transducer, the unit provides clean, distinct fish arches and clear separation of tightly schooled gamefish from bottom clutter. Anglers can adjust scanning parameters on the fly using Wide Mode to maximize sonar coverage under the hull when searching for active fish, or switch to Narrow Mode to focus the beam tightly on bottom contours and bait pods. Although it lacks the high-frequency side imaging found on larger models, its 2D CHIRP sonar gives anglers dependable depth tracking and lure monitoring capability.

Despite its smaller footprint, this unit offers comprehensive navigation capabilities. An internal precision GPS receiver pairs with preloaded Humminbird Basemap data covering more than 10,000 inland lakes and coastal boundaries across the continental United States. It supports premium aftermarket chart cards, including LakeMaster, CoastMaster, and Navionics. Furthermore, built-in AutoChart Live lets you construct your own bathymetric charts directly on water, recording bottom hardness, weed growth, and depth contours for up to eight hours of internal memory before requiring an optional AutoChart Zero Line card. It represents an accessible, reliable entry point for fundamental sonar and mapping needs.

• Space-saving 5-inch color TFT display ideal for compact consoles, ribs, and kayak dashboards.
• Dual Spectrum CHIRP sonar offering Wide Mode for search coverage and Narrow Mode for detailed target separation.
• Internal GPS chartplotter preloaded with Humminbird Basemap covering over 10,000 waterways.
• Real-time AutoChart Live mapping capability with eight hours of built-in recording time.

What Sets These Models Apart

Evaluating marine electronics requires balancing display dimensions, transducer compatibility, physical dashboard footprints, and communication networking. The table below outlines how these four Humminbird models differ across key functional specifications.

Product Name	Hardware Category & Screen Size	Primary Sonar Capabilities	Network & Live Sonar Compatibility
Humminbird MEGA Live 2 Forward-Facing Sonar	Imaging Transducer Accessory (No Screen)	Real-Time Live Sonar (Forward, Down, Landscape)	Direct Ethernet to XPLORE, APEX, and SOLIX G3
Humminbird XPLORE Series GPS Fish Finder	10-Inch Touchscreen / Keypad Control Head	MEGA SI+, MEGA DI+, Dual Spectrum CHIRP	Full Ethernet, NMEA 2000, Bluetooth, MEGA Live 2 Ready
Humminbird Helix 7 G4 GPS Fish	7-Inch Keypad Display with Transducer	MEGA SI (125 ft), MEGA DI (125 ft), Dual CHIRP	Standalone Console (Not MEGA Live 2 Compatible)
Humminbird 411660-1 Helix 5 Chirp GPS	5-Inch Keypad Display (Control Head)	Dual Spectrum CHIRP Sonar	Standalone Console (No Network or Live Sonar)

Buying Tips for Humminbird Fish Finders

When selecting the best humminbird fish finder setup, your first consideration must be whether you intend to run live forward-facing sonar immediately or in the future. Anglers searching for a hummingbird live scope setup must understand that the live transducer itself, such as the Humminbird MEGA Live 2, does not operate as a standalone screen; it requires a compatible multi-function display. If your goal is to view live bait tracking and fish reaction in real time, you must pair the transducer with an Ethernet-capable control head from the XPLORE, APEX, or SOLIX G3 families. Selecting a standalone unit like the Helix 7 or Helix 5 will limit your vessel to historical 2D sonar and static MEGA Imaging scans, as they do not support MEGA Live 2 connectivity.

Cable routing and power infrastructure represent another critical factor in your installation workflow. Forward-facing sonar transducers require clean, interference-free power and dedicated cable paths along your trolling motor shaft. The Humminbird MEGA Live 2 simplifies setup significantly by connecting directly to the display via an Ethernet cable without needing an external sonar processing box. However, you must still ensure you leave sufficient cable slack around the trolling motor steering collar to prevent binding or pinching when the motor turns. For the main display, installing an appropriately sized marine fuse block and dedicated wiring harness ensures your chartplotter maintains stable voltage without restarting during outboard engine cranking.

Finally, evaluate your physical helm ergonomics and operating environment. Touchscreen interfaces like that on the Humminbird XPLORE provide rapid waypoint entry, pinch-to-zoom map navigation, and quick menu switching. However, running across open water in rough spray or freezing conditions makes tactile softkeys indispensable. Choosing a unit that combines both input styles ensures you retain full control over your electronics regardless of weather conditions. For smaller vessels or tight dash panels where a 10-inch unit would obstruct forward visibility, a 7-inch or 5-inch display mounted on a sturdy gimbal bracket offers an organized layout while keeping critical navigational channels clear.

FAQ

What is the difference between Humminbird MEGA Live 2 and colloquial hummingbird live scope systems?

Live Scope is technically a trademarked product name belonging to a competitor, but anglers frequently use the phrase hummingbird live scope as a general search term when looking for forward-facing sonar within Humminbird’s ecosystem. The official Humminbird live sonar technology is the Humminbird MEGA Live 2 Forward-Facing Sonar, which delivers real-time forward, downward, and landscape acoustic imaging directly to compatible Humminbird displays.

Can the Humminbird Helix 7 or Helix 5 run the Humminbird MEGA Live 2 transducer?

No, the Humminbird Helix 7 G4 and Helix 5 CHIRP models listed here cannot run the Humminbird MEGA Live 2 forward-facing sonar transducer. The MEGA Live 2 transducer requires high-speed Ethernet processing compatible with Humminbird XPLORE, APEX, and SOLIX G3 units. The Helix 7 and Helix 5 units discussed operate as standalone chartplotters using their own dedicated imaging and 2D CHIRP transducers.

Does the Humminbird MEGA Live 2 require an external sonar black box?

No, one of the primary hardware advantages of the Humminbird MEGA Live 2 Forward-Facing Sonar is that it does not require an external sonar processing module or black box. The sonar processing hardware is built directly into the transducer housing, allowing it to connect directly to the control head using the included 20-foot Ethernet cable and 10-foot power cable.

What mapping charts are included with the Humminbird XPLORE Series display?

The Humminbird XPLORE Series GPS Fish Finder comes preloaded with Humminbird Basemap, which outlines over 10,000 lakes and continental U.S. coastlines with terrain markers, buoys, hazards, and marina locations. Furthermore, the listing specifies that it includes LakeMaster and CoastMaster VX map cards for regional waters in the United States and Canada.

How does AutoChart Live function on Humminbird fish finders?

AutoChart Live is a real-time bathymetric mapping feature built into Humminbird GPS units, including the XPLORE, Helix 7, and Helix 5 models. As your boat moves across the water, the unit uses internal GPS and sonar returns to generate custom high-definition depth contour lines, bottom hardness indicators, and vegetation maps. These units feature eight hours of built-in internal memory, which can be expanded using an optional AutoChart Zero Line SD card.
